Roof headlining & silencer pad for LX470 UZJ100R

Click on the part subgroup below to get genuine part numbers.

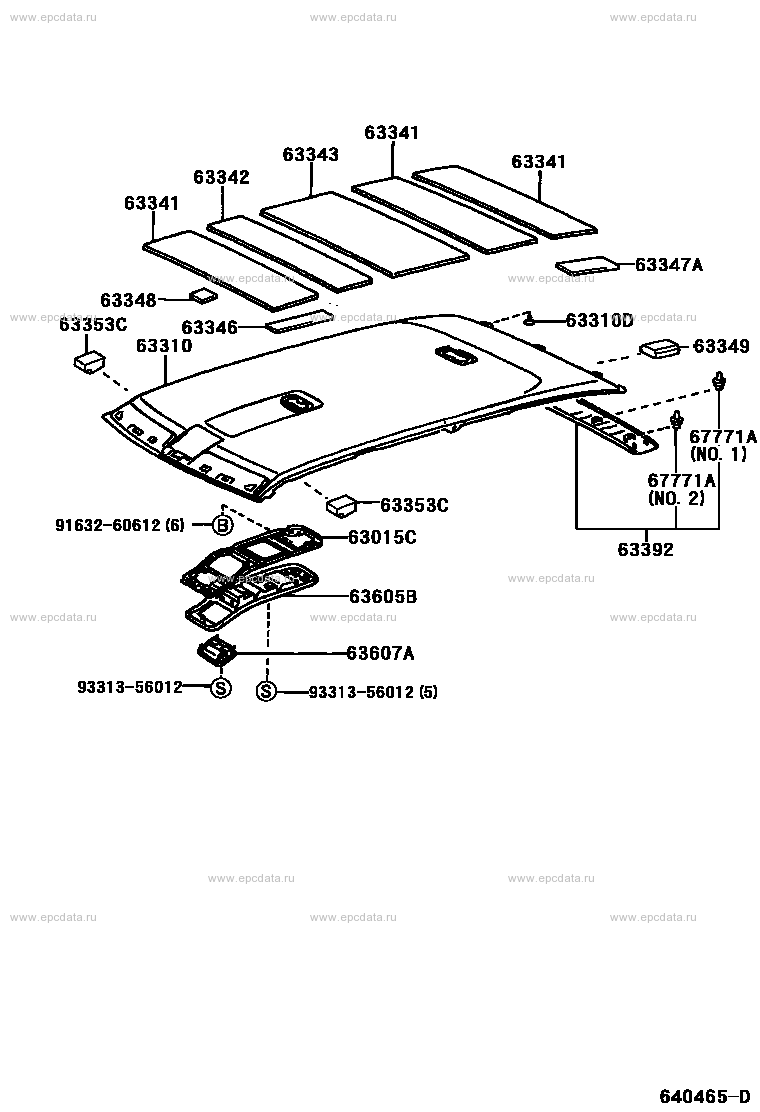

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 63341 PAD, ROOF SILENCER, NO.1 63343 PAD, ROOF SILENCER, NO.3 63342 PAD, ROOF SILENCER, NO.2 63347A PAD, ROOF SILENCER, NO.7 63348 PAD, ROOF SILENCER, NO.8 63310D CLIP, ROOF HEADLINING 63353C PAD, ROOF HEADLINING, CENTER 63346 PAD, ROOF SILENCER, NO.6 63310 HEADLINING ASSY, ROOF 63349 PAD, ROOF SILENCER, NO.9 67771A RETAINER, ROOF HEADLINING 9163260612 ** Std Part 63015C BRACKET SUB-ASSY, ROOF CONSOLE 63392 TRIM, ROOF HEADLINING, REAR 63605B BOX SUB-ASSY, ROOF CONSOLE 63607A PLATE SUB-ASSY, MAP LAMP 9331356012 ** Std Part

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 63306 TRIM SUB-ASSY, SUNSHADE 63318C MOULDING, SUN ROOF OPENING TRIM 63310 HEADLINING ASSY, ROOF 91631J0612 ** Std Part 63015C BRACKET SUB-ASSY, ROOF CONSOLE 63341 PAD, ROOF SILENCER, NO.1 63392 TRIM, ROOF HEADLINING, REAR 67771A RETAINER, ROOF HEADLINING 63310D CLIP, ROOF HEADLINING 9053020014 ** Std Part 63347A PAD, ROOF SILENCER, NO.7 63346 PAD, ROOF SILENCER, NO.6 63345B PAD, ROOF SILENCER, CENTER 63354B PAD, ROOF SILENCER, NO.13 63349 PAD, ROOF SILENCER, NO.9 63670C PLATE ASSY, MAP LAMP 63607A PLATE SUB-ASSY, MAP LAMP 9016730010 ** Std Part 9331356012 ** Std Part ** 81-21

LX470 UZJ100R
