Roof panel & back panel for LX470 UZJ100R
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
Click part number in the scheme or in the list: 9090119055 ** Std Part63187A BRACKET, ROOF RACK, REAR 9090119054 ** Std Part 63111 PANEL, ROOF 91631J0612 ** Std Part 63105A FRAME SUB-ASSY, BACK DOOR OPENING 63143B REINFORCEMENT, ROOF PANEL, NO.3 63144B REINFORCEMENT, ROOF PANEL, NO.4 63102A PANEL SUB-ASSY, WINDSHIELD HEADER 63451B REINFORCEMENT, ROOF RACK, NO.1 63142 REINFORCEMENT, ROOF PANEL, NO.2 63141G REINFORCEMENT, ROOF PANEL, NO.1 |
Scheme 2
|
Click part number in the scheme or in the list: 63187A BRACKET, ROOF RACK, REAR63111 PANEL, ROOF 9090119055 ** Std Part 63142 REINFORCEMENT, ROOF PANEL, NO.2 63143B REINFORCEMENT, ROOF PANEL, NO.3 63102A PANEL SUB-ASSY, WINDSHIELD HEADER 9017906060 ** Std Part 63451B REINFORCEMENT, ROOF RACK, NO.1 63105A FRAME SUB-ASSY, BACK DOOR OPENING 61283D BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, RH 91631J0612 ** Std Part 63144B REINFORCEMENT, ROOF PANEL, NO.4 61281C BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 61284C BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, LH 9164180612 ** Std Part 9090119054 ** Std Part |

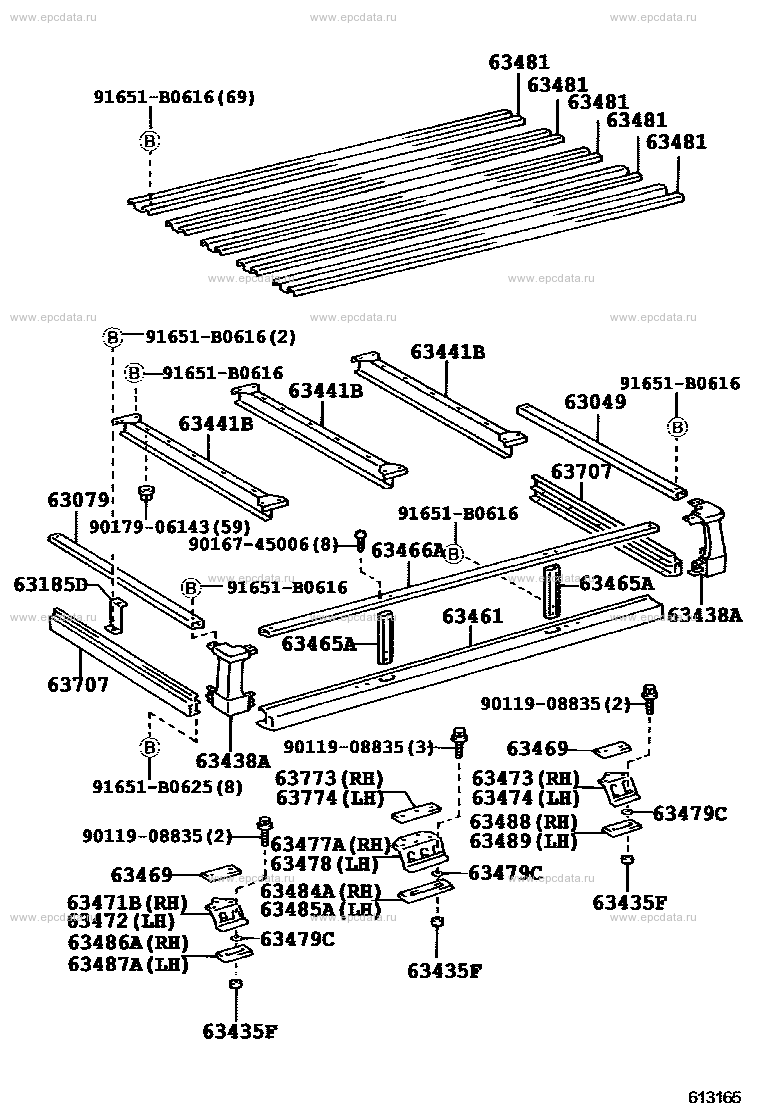

Scheme 3

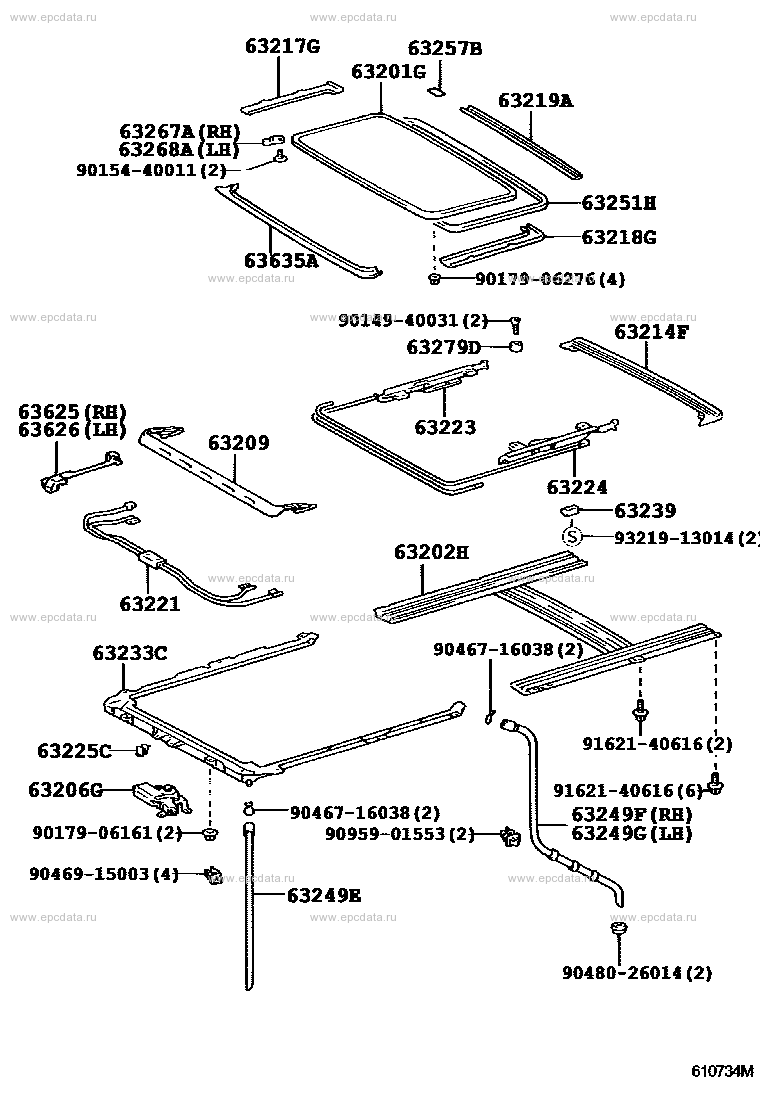

Scheme 4
