Front bumper & bumper stay for LX470 UZJ100R

Click on the part subgroup below to get genuine part numbers.

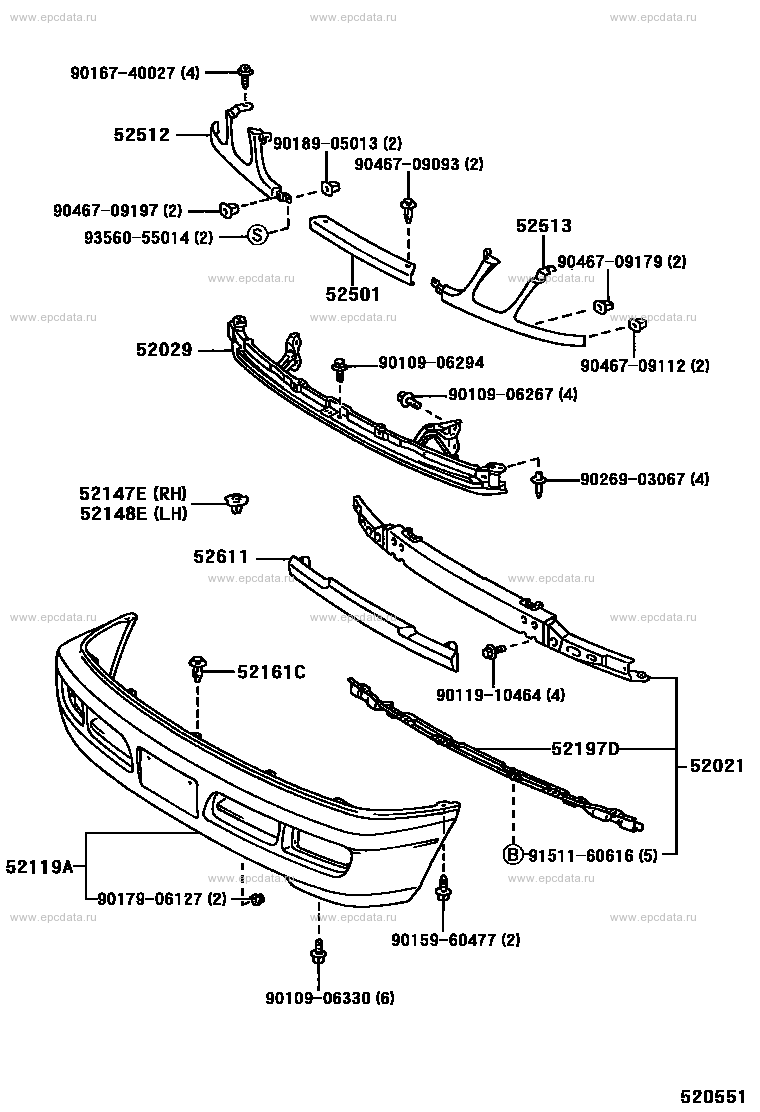

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 9016740027 ** Std Part 52512 FILLER, FRONT BUMPER, RH 9046709197 ** Std Part 9356055014 ** Std Part 52029 REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER 9018905013 ** Std Part 9046709093 ** Std Part 52501 FILLER SUB-ASSY, FRONT BUMPER 9010906294 ** Std Part 9010906267 ** Std Part 52021 REINFORCEMENT SUB-ASSY, FRONT BUMPER 9026905044 ** Std Part 9046709112 ** Std Part 9011910464 ** Std Part 52119A COVER, FRONT BUMPER 9015960477 ** Std Part 9010906330 ** Std Part 52161C PIECE, FRONT BUMPER 52611 ABSORBER, FRONT BUMPER ENERGY 52148E BRACKET, FRONT BUMPER MOUNTING, LH 52147E BRACKET, FRONT BUMPER MOUNTING, RH 52513 FILLER, FRONT BUMPER, LH 9046709179 ** Std Part 52197D REINFORCEMENT, FRONT BUMPER ARM 9151160616 ** Std Part

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9016740027 ** Std Part 52512 FILLER, FRONT BUMPER, RH 9018905013 ** Std Part 9046709093 ** Std Part 9046709197 ** Std Part 52513 FILLER, FRONT BUMPER, LH 9356055014 ** Std Part 9046709179 ** Std Part 52501 FILLER SUB-ASSY, FRONT BUMPER 52029 REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER 9010906294 ** Std Part 9046709112 ** Std Part 9010906267 ** Std Part 9026903067 ** Std Part 52147E BRACKET, FRONT BUMPER MOUNTING, RH 52148E BRACKET, FRONT BUMPER MOUNTING, LH 52611 ABSORBER, FRONT BUMPER ENERGY 52161C PIECE, FRONT BUMPER 9011910464 ** Std Part 52197D REINFORCEMENT, FRONT BUMPER ARM 52021 REINFORCEMENT SUB-ASSY, FRONT BUMPER 9151160616 ** Std Part 52119A COVER, FRONT BUMPER 9017906127 ** Std Part 9015960477 ** Std Part 9010906330 ** Std Part

LX470 UZJ100R
