Anti-theft device for LS430 UCF30R
Click on the part subgroup below to get genuine part numbers.

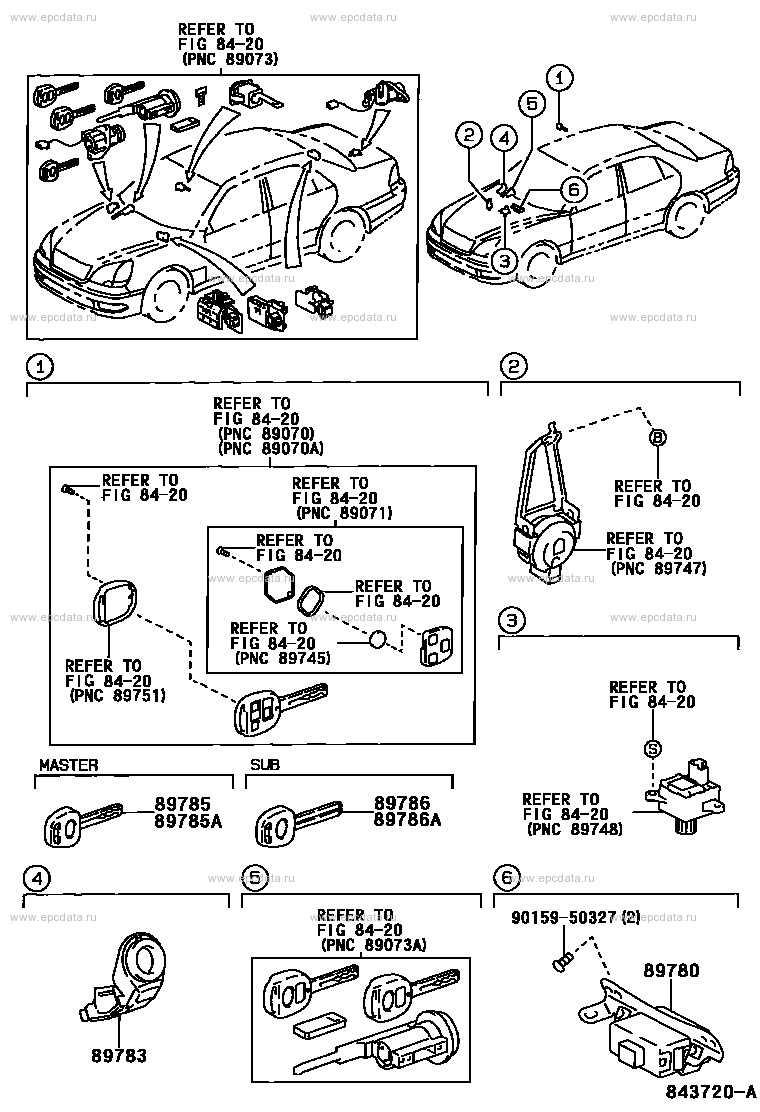

Scheme 1
|
Click part number in the scheme or in the list: ** 84-2089786 TRANSMITTER, TRANSPONDER KEY SUB 89785 TRANSMITTER,TRANSPONDER KEY MASTER 89786A TRANSMITTER, TRANSPONDER CUT KEY SUB 89785A TRANSMITTER, TRANSPONDER CUT KEY MASTER 9015950327 ** Std Part 89780 COMPUTER ASSY, TRANSPONDER KEY 89783 AMPLIFIER, TRANSPONDER KEY |
Scheme 2
|
Click part number in the scheme or in the list: ** 84-209015950327 ** Std Part 89780 COMPUTER ASSY, TRANSPONDER KEY 89783 AMPLIFIER, TRANSPONDER KEY |
Scheme 3
|
Click part number in the scheme or in the list: ** 86-1189730B COMPUTER ASSY, THEFT WARNING 9015950327 ** Std Part 89075 SENSOR SUB-ASSY, THEFT WARNING 84903B SWITCH SUB-ASSY, DOOR UNLOCK 89077 PARTS KIT, SECURITY |
