Accelerator link for IS200 / 300 JCE10L

Click on the part subgroup below to get genuine part numbers.

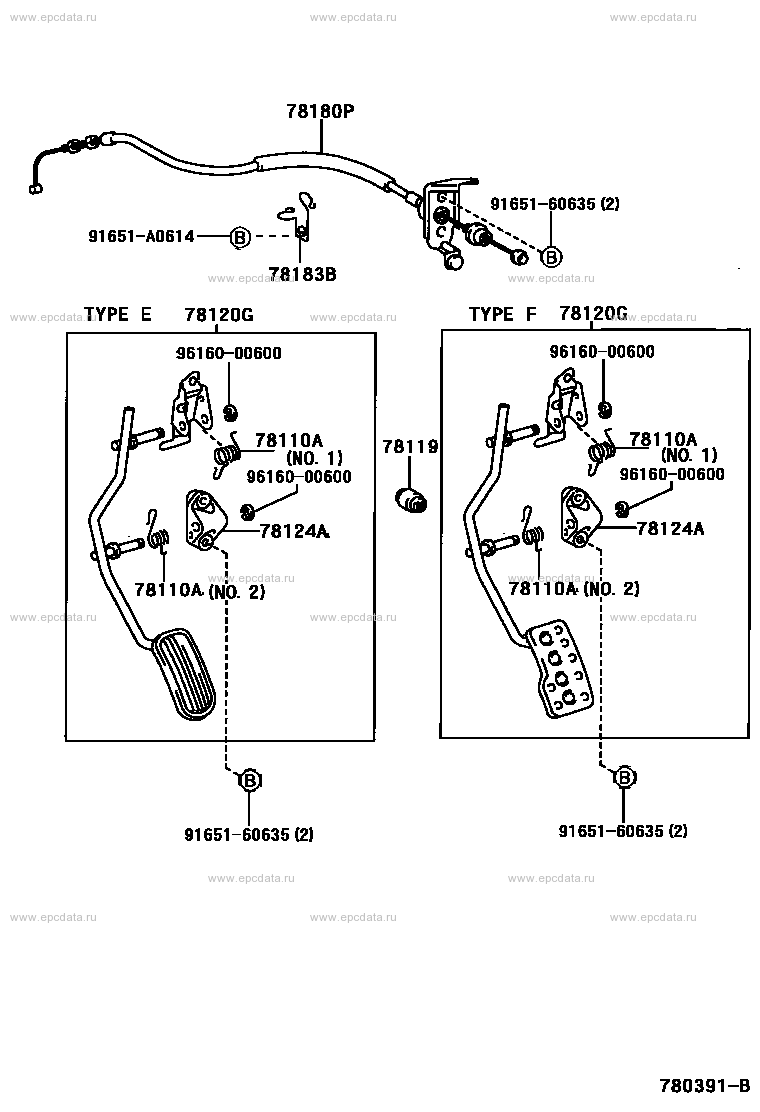

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 78180P CABLE ASSY, ACCELERATOR CONTROL 9165160635 ** Std Part 91651A0614 ** Std Part 78183B CLAMP, ACCELERATOR CONTROL CABLE 78120G ROD ASSY, ACCELERATOR PEDAL 78119 STOPPER, ACCELERATOR PEDAL ROD 9616000600 ** Std Part 78124A BRACKET, ACCELERATOR PEDAL ROD 78110A SPRING (FOR ACCELERATOR PEDAL ROD)

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 78180P CABLE ASSY, ACCELERATOR CONTROL 9165160635 ** Std Part 91651A0614 ** Std Part 78183B CLAMP, ACCELERATOR CONTROL CABLE 78120G ROD ASSY, ACCELERATOR PEDAL 9616000600 ** Std Part 78110A SPRING (FOR ACCELERATOR PEDAL ROD) 78119 STOPPER, ACCELERATOR PEDAL ROD 78124A BRACKET, ACCELERATOR PEDAL ROD

IS200 / 300 JCE10L
