Fuel tank & tube for GS300 / 430 / 460 GRS190L

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 9015950269 ** Std Part 9018905137 ** Std Part 77293A SHIELD, FUEL TANK FILLER PIPE, NO.3 77316 GASKET, FUEL TANK CAP 77290 SHIELD ASSY, FUEL TANK FILLER PIPE 77310A CAP ASSY, FUEL TANK 77601A BAND SUB-ASSY, FUEL TANK, NO.1 77681 SEAT, FUEL TANK BAND, RH 9017906169 ** Std Part 9011910814 ** Std Part 77642A PROTECTOR, FUEL TANK, NO.2 23280J REGULATOR ASSY, FUEL PRESSURE 23280K RING, O(FOR FUEL PRESSURE REGULATOR) 77024A PLATE SUB-ASSY, FUEL SUCTION 77169A GASKET, FUEL SUCTION TUBE SET 9046050008 ** Std Part 77016H TUBE SUB-ASSY, FUEL RETURN VENT 77144 RETAINER, FUEL PUMP GAUGE 77241V CLIP, TUBE JOINT 77209B TUBE SUB-ASSY, FUEL PUMP 9017908189 ** Std Part 77655A CUSHION, FUEL TANK, NO.5 77511B BRACKET, FUEL TANK 7764448010 ** Std Part 77229C CLAMP, BREATHER TUBE 77269A HOSE, FUEL TANK BREATHER 9046724002 ** Std Part 9613251100 ** Std Part 23221 PUMP, FUEL 77196 CLAMP, EVAPORATION VENT TUBE, NO.1 77213B HOSE, FUEL TANK TO FILLER PIPE 77656B CUSHION, FUEL TANK, NO.6 9046046003 ** Std Part 77391 RING, FUEL INLET BOX 77281A CLAMP, FUEL FILLER PIPE 77608C CUSHION SET, FUEL TANK 77656A CUSHION, FUEL TANK, NO.4 77201E PIPE SUB-ASSY, FUEL TANK FILLER 9046022001 ** Std Part 77654A CUSHION, FUEL TANK, NO.4 9017906159 ** Std Part 77030A LOCK ASSY, FUEL LID W/MOTOR 77377 RETAINER, FUEL FILLER OPENING LID LOCK 91621B0816 ** Std Part 91626B0614 ** Std Part 9415180641 ** Std Part 77216A SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A SUPPORT, FUEL TANK FILLER PIPE, NO.2 77100 TANK ASSY, FUEL 77020A TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77169B GASKET, FUEL SUCTION TUBE SET, NO.1 77285A SUPPORT, FUEL RETURN AND MAIN TUBE ** 84-01 77366 SPRING, FUEL FILLER OPENING LID HINGE 77350 LID ASSY, FUEL FILLER OPENING 9026906017 ** Std Part 9017906264 ** Std Part 77606 PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77651A CUSHION, FUEL TANK, NO.1 77652A CUSHION, FUEL TANK, NO.2 9017906168 ** Std Part 77174 SUPPORT, FUEL SUCTION, NO.1 77289 HOLDER, FUEL TANK PIPE SETTING 77131C SUB-TANK, FUEL, NO.1 77653A CUSHION, FUEL TANK, NO.3 77785 HARNESS, FUEL PUMP

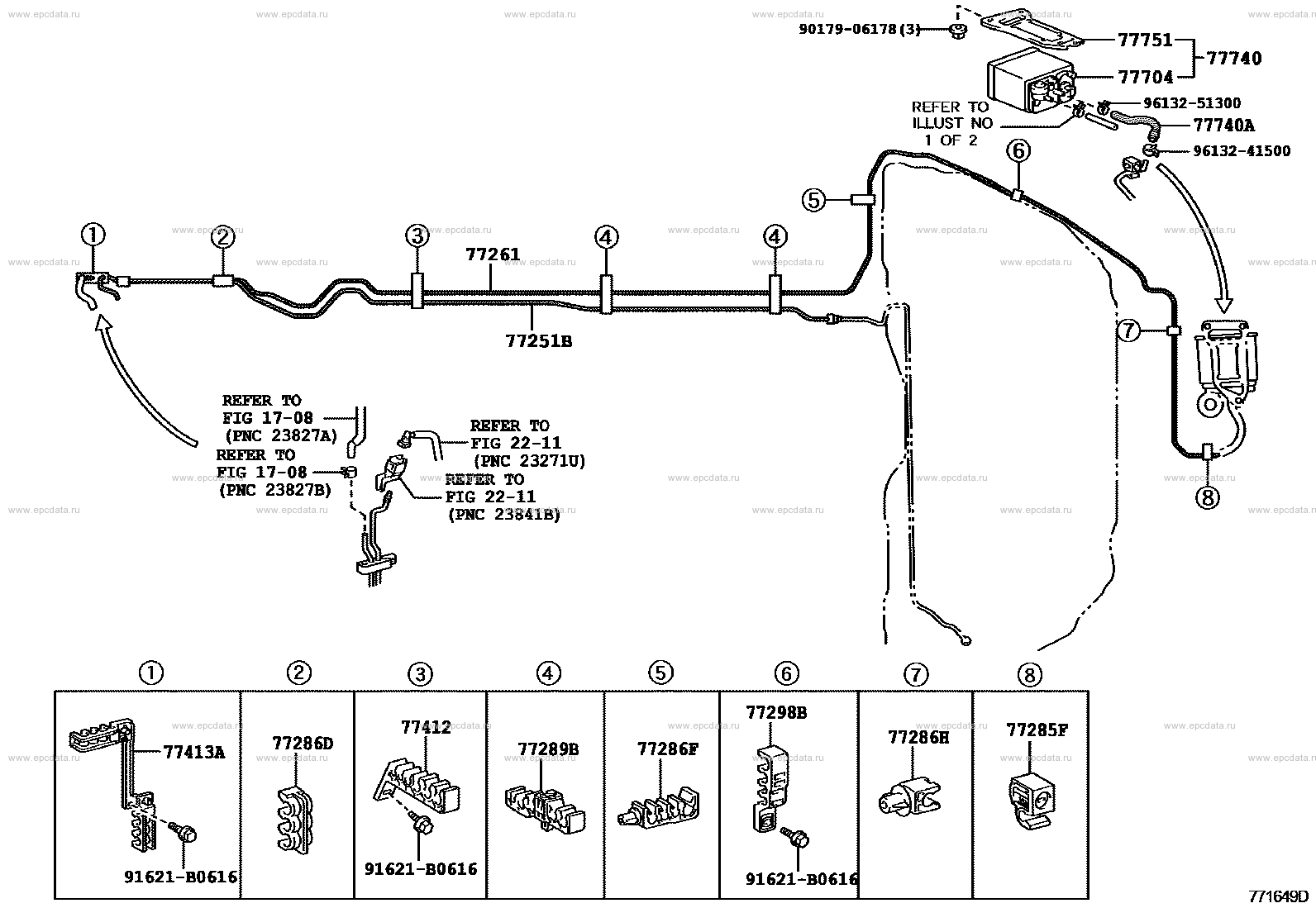

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 77261 TUBE SUB-ASSY, FUEL EMISSION 77251B TUBE, FUEL MAIN ** 22-11 ** 17-08 77413A SUPPORT, FUEL TUBE GROMMET, NO.3 91621B0616 ** Std Part 77286D CLAMP, FUEL TUBE, NO.2 77412 SUPPORT, FUEL TUBE GROMMET, NO.2 77289B CLAMP, FUEL TUBE, NO.3 77286F CLAMP, FUEL TUBE, NO.2 77286H CLAMP, FUEL TUBE, NO.3 77298B CLAMP, FUEL TUBE, NO.4 77285F CLAMP, FUEL TUBE, NO.1 9613251300 ** Std Part 9613241500 ** Std Part 77740A HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) 9017906178 ** Std Part 77740 CANISTER ASSY, CHARCOAL 77704 CANISTER SUB-ASSY, CHARCOAL 77751 BRACKET, CHARCOAL CANISTER BASE

GS300 / 430 / 460 GRS190L
