Rear bumper & bumper stay for ES300 MCV30L

Click on the part subgroup below to get genuine part numbers.

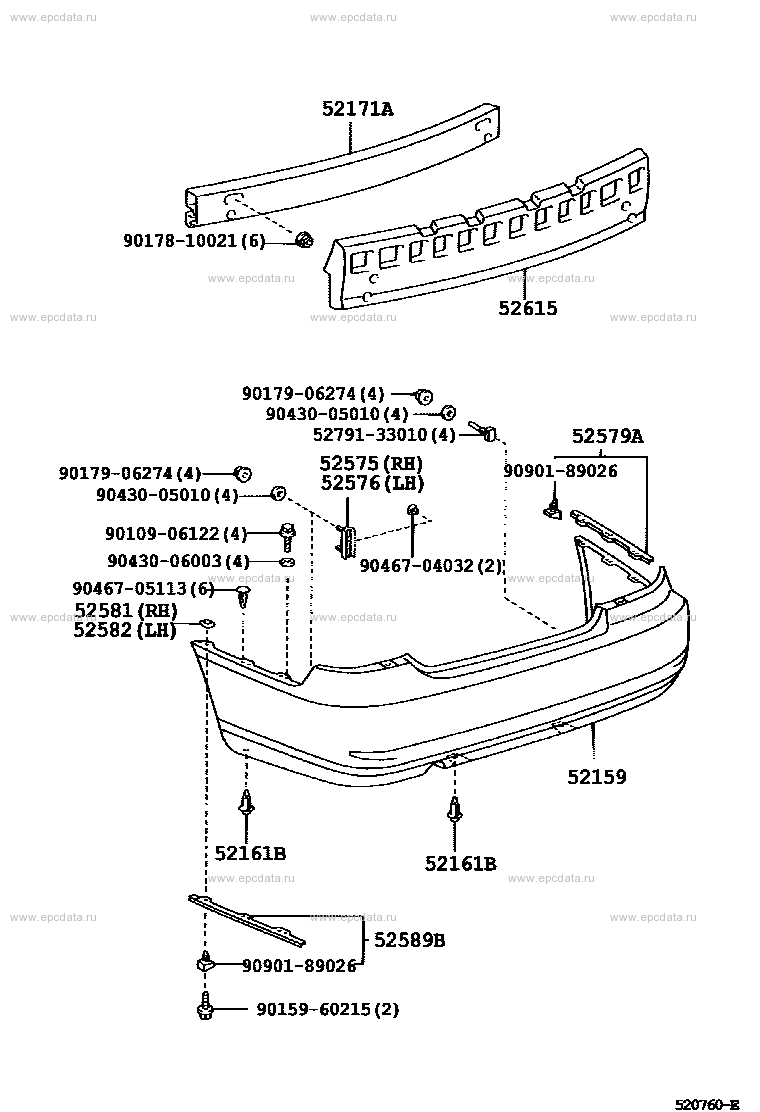

Open full size scheme

Click part number in the scheme or in the list: 52171A REINFORCEMENT, REAR BUMPER, NO.1 9017810021 ** Std Part 52615 ABSORBER, REAR BUMPER ENERGY 52579A RETAINER, REAR BUMPER SIDE, NO.3 RH 9090189026 ** Std Part 9017906274 ** Std Part 9043005010 ** Std Part 5279133010 ** Std Part 52575 RETAINER, REAR BUMPER SIDE, RH 52576 RETAINER, REAR BUMPER SIDE, LH 9046704032 ** Std Part 9010906122 ** Std Part 9043006003 ** Std Part 9046705113 ** Std Part 52581 PROTECTOR, REAR BUMPER, RH 52582 PROTECTOR, REAR BUMPER, LH 52161B PIECE, REAR BUMPER 52589B RETAINER, REAR BUMPER SIDE, NO.3 LH 9015960215 ** Std Part 52159 COVER, REAR BUMPER

ES300 MCV30L
